EL23
IP40

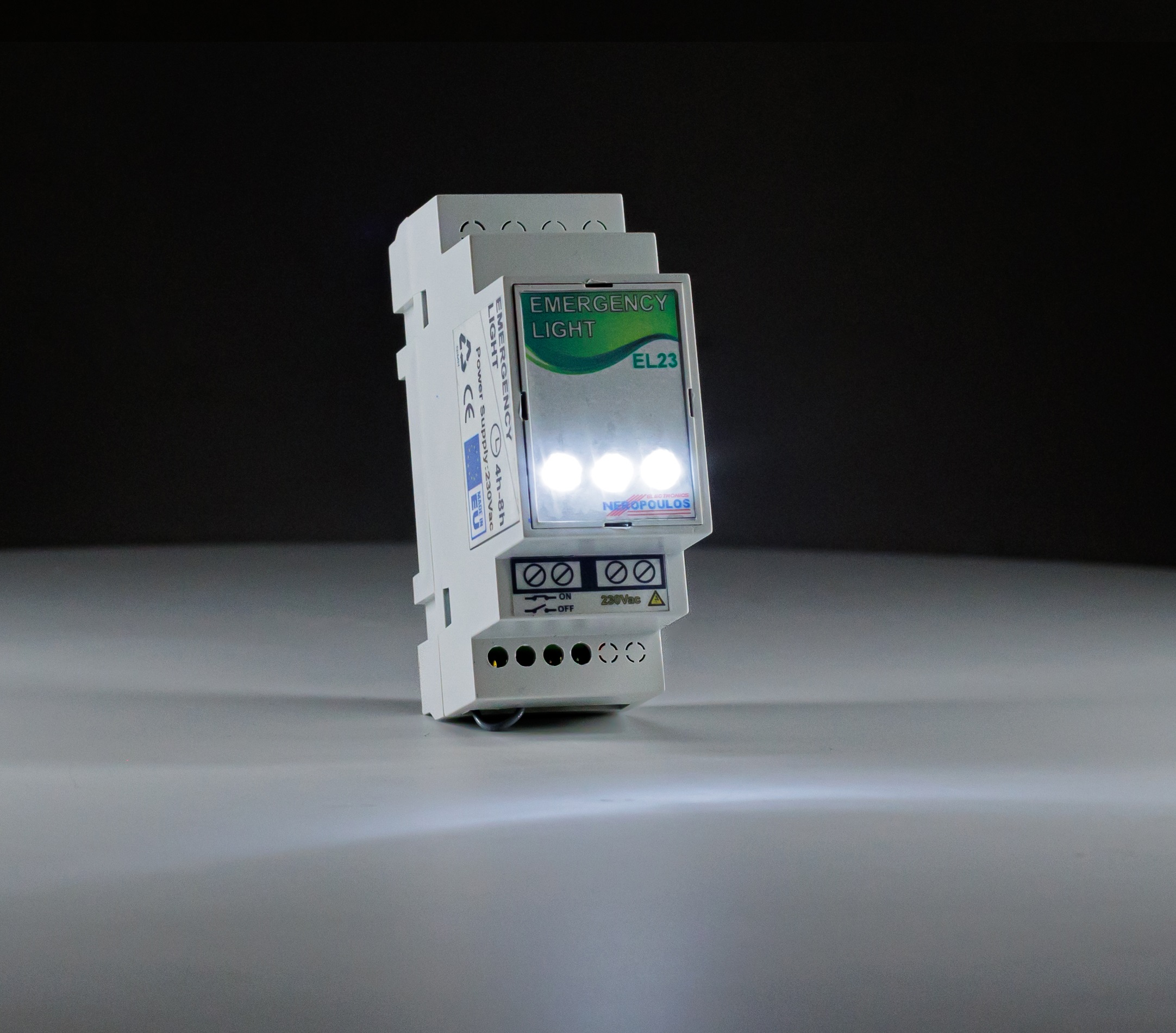

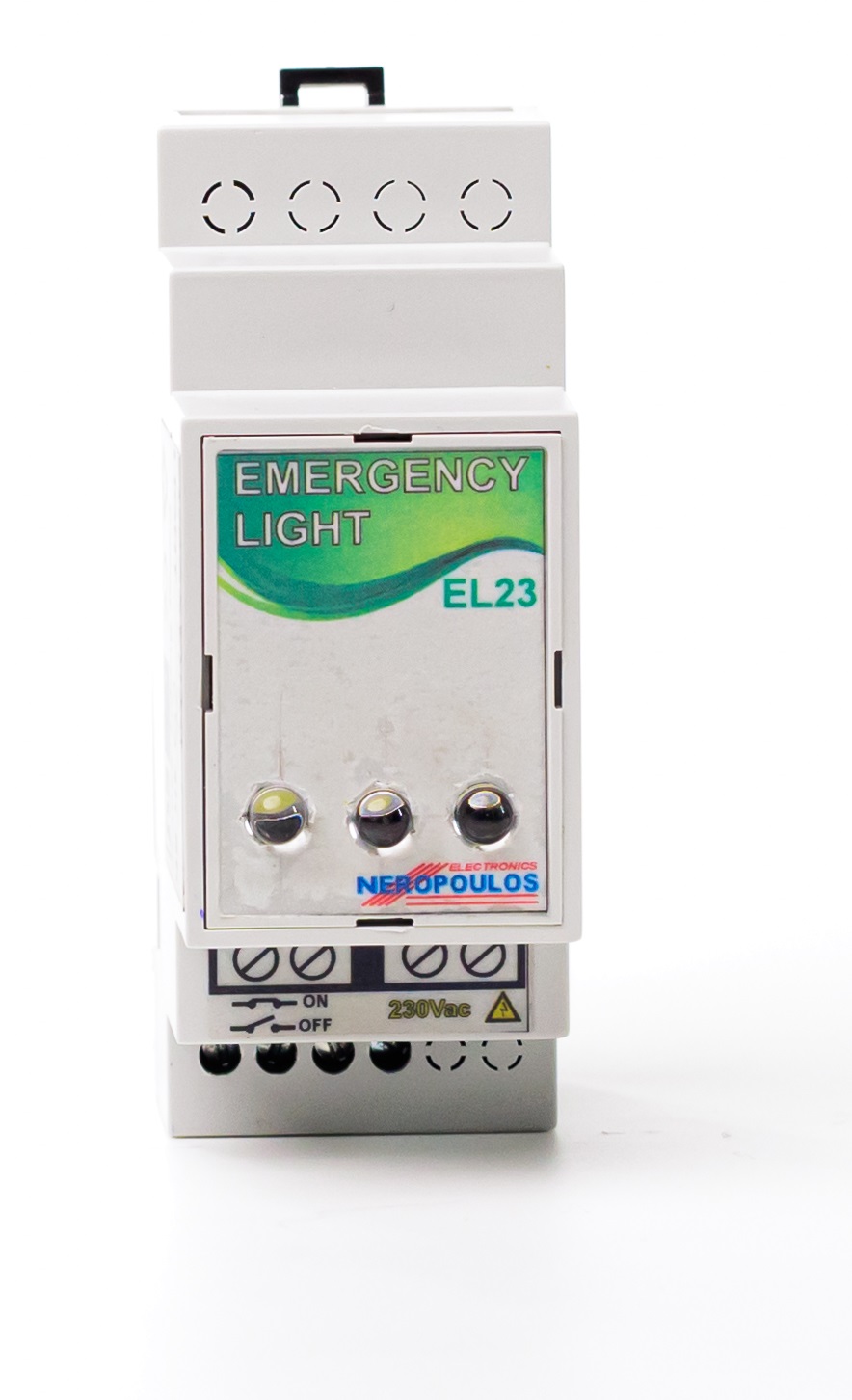

It is a small emergency lighting unit (2 modules) that is mounted on an electrical panel (rail) and provides lighting for more than (4) four hours when there is a power failure, it has a rechargeable battery.
When it is installed in our electrical panel of our supply ,in voltage failure, the device lights up and makes it easier for us to do any service if a fuse has blown but still gives enough lighting in the area where our electrical panel is.
SPECIFICATIONS
- When installing it, the jumper must be short-circuited to start the battery.
- When connected it charges and the LED lights light up dimly, the battery charges in 24 hours in case of an interruption the lights light up brightly.
- Power Supply : 230V ac 50/60 HZ.
- Power : 0,2 W.
- Battery operating time : Over (4) four hours.
- 3 Leds of 9500Κ .
- 2 MODULE DIMENSIONS
- ΙΡ 40.
- 0 to +50
- The battery included is 9V 220 mAh Ni-MH. If it reaches the end of its life, it can be replaced after the 230 Vac power supply is cut off and only by qualified personnel.
SAFETY WARNINGS
- When installing and operating the product it is necessary to follow the following instructions.
- The product must be installed by a qualified person, in strict compliance with the connection diagram.
- Do not use the product for purposes other than those indicated.
- In case of malfunction of the product do not carry out any repair.
- Before accessing the terminals, make sure that the cables are free of 230 Vac power.
- During the connection, the 230 Vac power supply to the electrical panel must be switched off.
